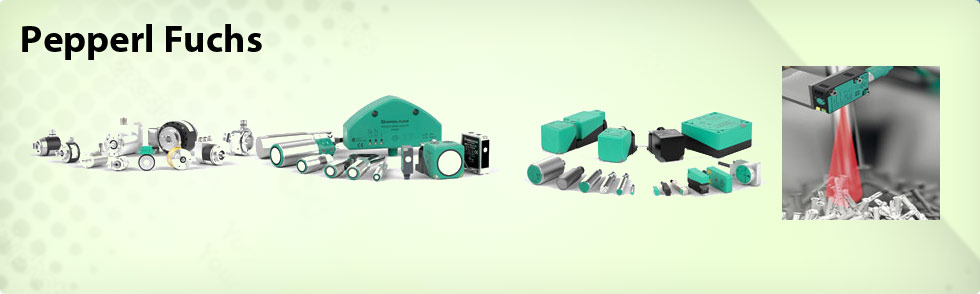

Pepperl Fuchs

Capacitive sensors can be used to detect metal objects as well as nearly all other materials. These sensors are often used in applications including level, flow control for detection of liquids, grains and powders.

Standard Capacitive Sensor Product features:

• 12, 18 and 30 mm cylindrical styles of stainless steel or plastic housings
• 5mm thin rectangular and long range 80 mm x 80 mm x 40 mm styles
• Sensor outputs of 3-wire DC and NAMUR output types
• Models with hazardous area approvals



Our broad range of photoelectric sensors is aimed at all automation solutions where noncontact object detection can be utilized. The wide variety of different operating principles, models, sizes and specifications means that the best possible sensor can always be found for the relevant application and all conditions that occur in practice can be met.

Take a look at our impressive selection of noncontact photoelectric sensors. You are sure to find the right one for you. Perfectly adapted customer-specific optical solutions are also available. Talk to us!

Diffuse mode sensors are particularly easy to install, since only one device has to be fitted and no reflector is required. These sensors operate primarily at close range, feature optimum switching accuracy, and can reliably detect even very small objects.

The emitter and receiver are aligned in a housing such that the retroreflective sensors are easy to install. Simply position a reflector on the opposite side and align the sensor with it.

The emitter and receiver on thru-beam sensors are aligned opposite one another. The advantage of this is that the light reaches the receiver directly and long detection ranges and high excess gain can therefore be achieved. These sensors are capable of reliably detecting almost any object. The angle of incidence, surface characteristics, color of the object, etc., are irrelevant and do not influence the functional reliability of the sensor.

Fiber Optic Sensor and cables are the perfect solution for applications where the direct mounting of sensors is not possible due to space restrictions, temperature extremes, and so on. Small fiber optic beams are ideal for detecting tiny objects.

With a fast response time, the devices are ideal for detecting tiny objects from long distances. They are frequently used to detect objects on vibrating and oscillating conveyors. Slot grid sensors handle challenging counting and monitoring tasks such as detecting non-guided objects in free fall.

Mainly used in the Packaging & printing industry ,Pepperl Fuchs sensor is designed to work in high frequency applications.
In the automation of packaging and printing processes, the reliable detection of print and color marks plays a key role in coordinating the various processing steps. Photoelectric contrast sensors are specially designed for such detection tasks.

Personnel protection is becoming increasingly important in automated processes. Wherever machines perform high-risk movements, the relevant health and safety regulations must be observed. Even if the operator is momentarily distracted, shearing, crushing, and impact injuries must be prevented.

Even the smallest model is suitable for a wide range of measuring and positioning tasks. It operates using laser triangulation and an analog output. All other sensors from the VDM series use Pulse Ranging Technology, offer long sensing ranges, and achieve extremely accurate measurement results. PRT uses high-intensity light pulses to provide a high degree of operating reliability, even under difficult ambient conditions with exposure to ambient light and dust.

Ultrasonic sensors can be used to solve even the most complex tasks involving object detection or level measurement with millimeter precision, because their measuring method works reliably under almost all conditions.

No other measuring method can be successfully put to use on such a wide scale and in so many different applications. The devices areextremely robust, making them suitable for even the toughest conditions. The sensor surface cleans itself through vibration, and that is not the only reason why the sensor is insensitive to dirt. The physical principle—the propagation of sound—works, with a few exceptions, in practically any environment.

Features :-

• Diffuse and Retroreflective Mode Sensors for level measurement upto 10 metres
• Devices with TEACH-IN functionality for fast and simple installation
• Thru Beam ultrasonic Sensors for Bottling , Conveyor applications
• Sensors with Digital ( 1 PNP / 2 PNP outputs ) , Analog Outputs ( 4-20 mA , 0-10 V )


Double sheet sensors are ultrasonic thru-beam sensors that have been optimized specifically for sheet feed applications, including double sheet detection, label counting, and splice detection. Double sheet and double material sensors distinguish between empty gaps, one, and two layers of material, including paper, metals, wooden boards, and glass panes.

Rotary encoders can be used in all applications that require monitoring rotation rate, speed, acceleration and direction. These sensors can be utilized in many applications found in mechanical engineering, the conveyor industry, material handling and the packaging industry. You are certain to find a suitable rotary encoder for your application from our broad product offering.
In automation, rotary encoders are used as sensors for angle, position, speed and acceleration. Linear motion can also be measured through the use of spindles, gear racks, measuring wheels or cable pulls.

Applications include real-time inclination monitoring in a dip-coating system for car bodies, or tilt-angle monitoring on mobile equipment.
